How do you choose aisle widths for a warehouse racking layout?

Choose aisle widths from the handling equipment first, then test the layout against loads, movement and safety requirements. Pallet racking must give each vehicle enough room to approach, turn, lift and leave without contacting the structure or stock.

There is no single aisle width for every warehouse. A counterbalance forklift needs different working space from a reach truck, pedestrian pallet truck or other handling equipment. The vehicle’s turning envelope, steering method, mast movement, fork length and load size all affect the required clearance.

Start by recording the equipment used in each part of the building. Include equipment already owned and any vehicles being considered for future use. A layout designed around one vehicle may restrict operations if another vehicle needs more room.

• Vehicle dimensions: use the equipment manufacturer’s operating data, including turning requirements and load-handling position.
• Load dimensions: measure pallet length, width, height, weight and any overhang.
• Racking depth: allow for the pallet position within the bay, including clearances that prevent loads striking uprights or adjacent pallets.
• Handling direction: consider whether vehicles approach square to the rack or work at an angle.
• Traffic movement: allow for travel, turning, reversing and passing arrangements where those movements form part of the operation.

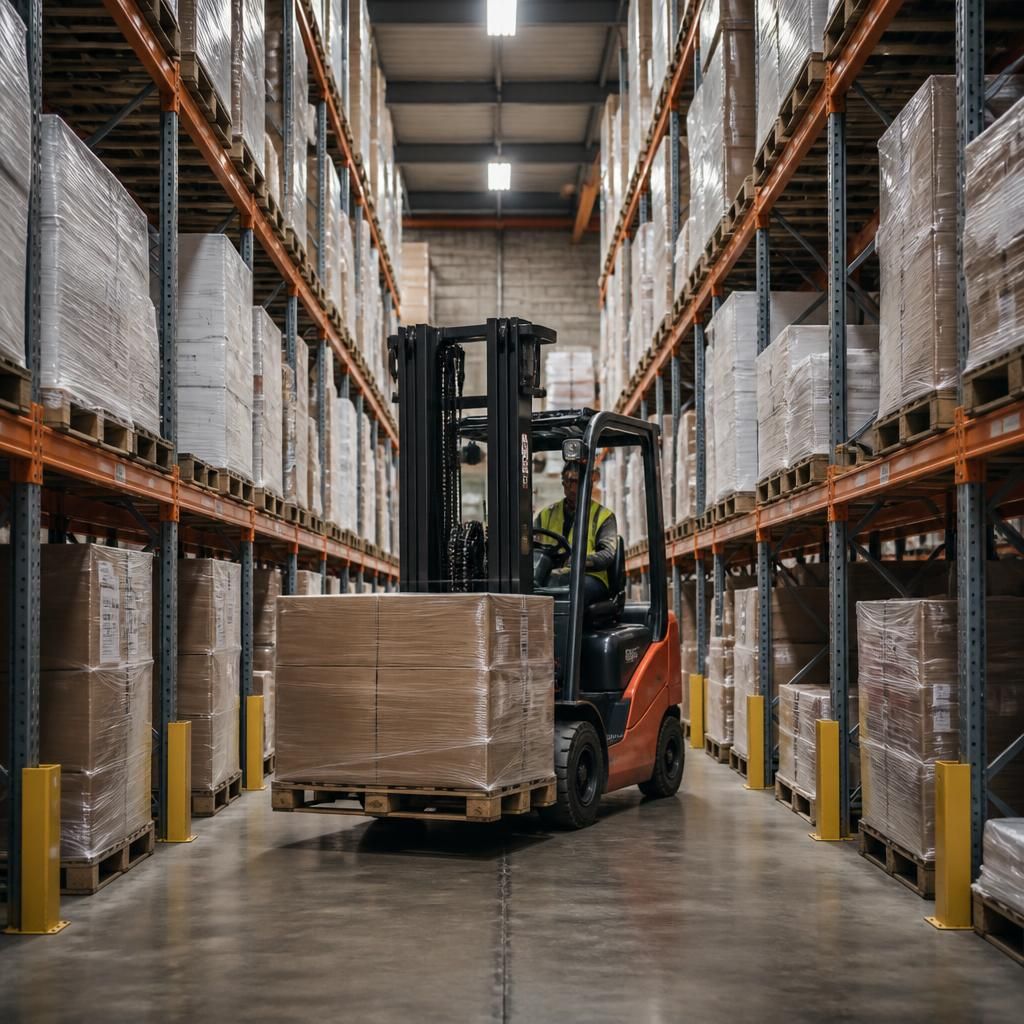

The working aisle must support the complete handling movement, not simply the vehicle’s travel path. A driver may need to enter, align the forks, lift the pallet and withdraw without encroaching into the opposite rack. Loads that project beyond the pallet can reduce usable clearance further.

Also separate ordinary travel aisles from turning areas and cross-aisles. An end area may allow vehicles to change direction, but it does not correct an aisle that is too narrow for the intended approach. Marking these areas clearly helps distinguish storage space from vehicle movement space.

Storage density should not outweigh safe access. Narrower aisles can create additional rack positions, but they may require different handling equipment and more controlled movements. Wider aisles can support easier vehicle movement, while using more floor area. The suitable balance depends on the building, stock profile and operating method.

Review how often each location needs access. High-turnover stock may need straightforward approach and removal, while less frequently handled stock may suit a different position within the layout. The aisle plan should reflect actual movements rather than treating every pallet location identically.

Pedestrian routes need separate consideration. Identify where people collect stock, inspect loads, operate doors or cross vehicle routes. Use suitable separation, line marking and safety barriers where the risk assessment requires them. Keep emergency routes, fire exits and access to building controls unobstructed.

Check the complete aisle zone vertically as well as horizontally. Door heads, lighting, sprinklers, beams, services and other obstructions can affect lifting and movement. The available height must suit the rack arrangement, pallet loads and vehicle operation without creating contact risks.

Allowances should also reflect stock variation. If pallets differ in condition or dimensions, designing only around the smallest load can leave insufficient working clearance. Record the largest normal load and identify unusual loads that need a separate handling method.

At Spartan Direct, we can assess these points during a no-obligation site meeting and survey. We then prepare a written proposal and working drawings showing the relationship between pallet racking, aisles, access routes and fixed building features.

Those drawings allow you to review vehicle movements before installation. They can also show where a proposed aisle arrangement affects storage positions, pedestrian separation or access to essential routes. Where required, project management can continue from proposal and tender stage through installation and final commissioning.

For a practical review, provide equipment details, pallet measurements, stock weights, access requirements and any known building restrictions. We can then assess aisle clearances as part of the wider warehouse racking design and layout, rather than selecting a width in isolation.
