What measurements do you need for warehouse pallet racking installation?
For warehouse pallet racking installation, we need clear building height, floor dimensions, access points, obstructions and aisle space. We also need pallet sizes, weights, load levels and handling equipment details to prepare accurate proposals and working drawings.
Warehouse pallet racking installation needs more than room dimensions. We need a verified site record, usable stock data and handling information, so the proposed layout can be checked against the building and daily operation.
Start with a measured site plan
Use one fixed reference point throughout the survey. Record the positions of walls, columns, corners and changes in floor level from that point. This prevents small discrepancies from affecting the proposed rack positions.
Record the lowest point beneath roofs, beams, lights, ductwork, sprinklers and other services. The lowest obstruction usually controls the usable rack height, rather than the highest point in the building. Note any sloping roof areas or sections with different heights.
Mark floor joints, ramps, drains, damaged areas and other features that could affect upright positions. Include known slab restrictions or loading information where available. These details allow the proposed arrangement to account for the actual floor, not only the drawn outline.

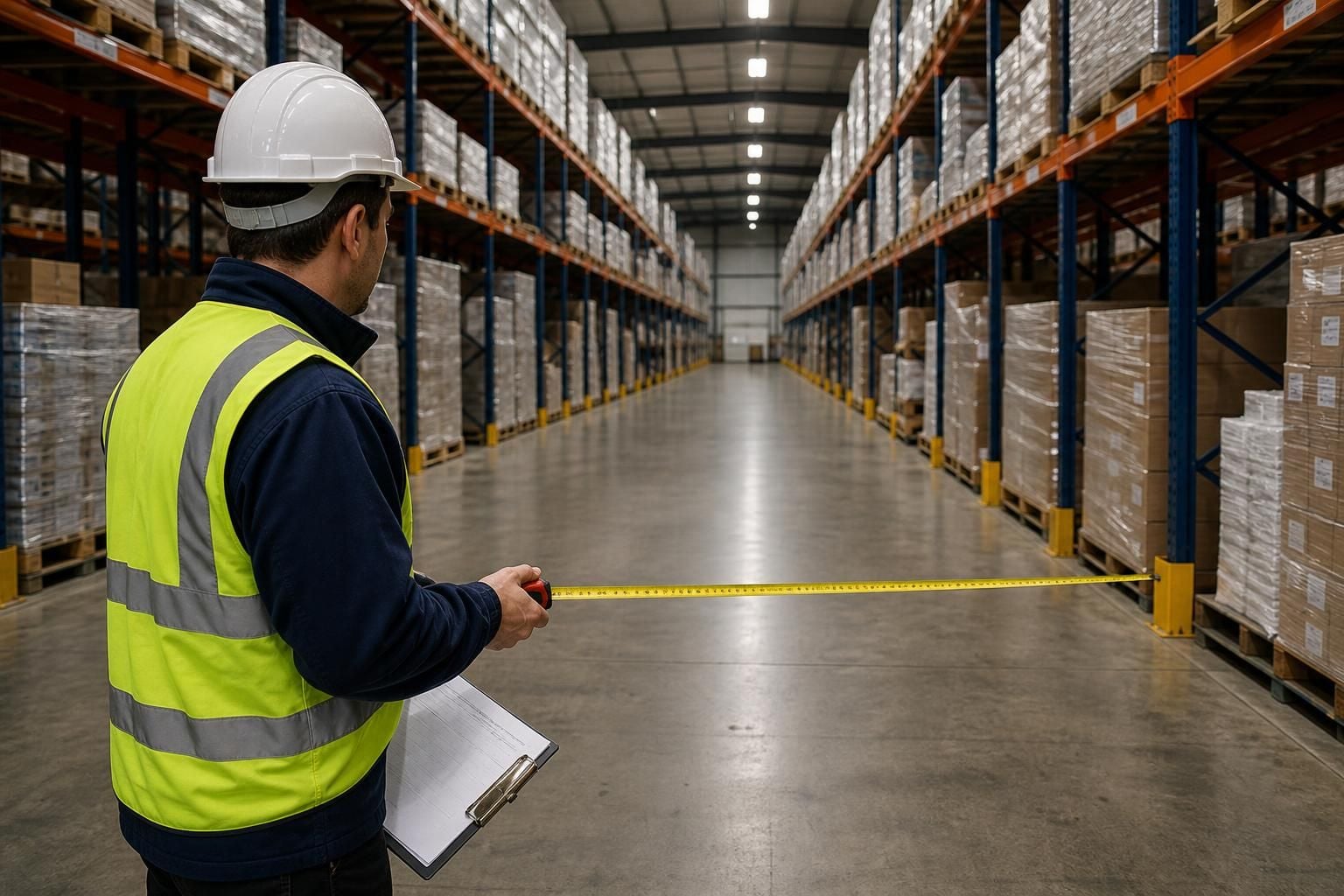

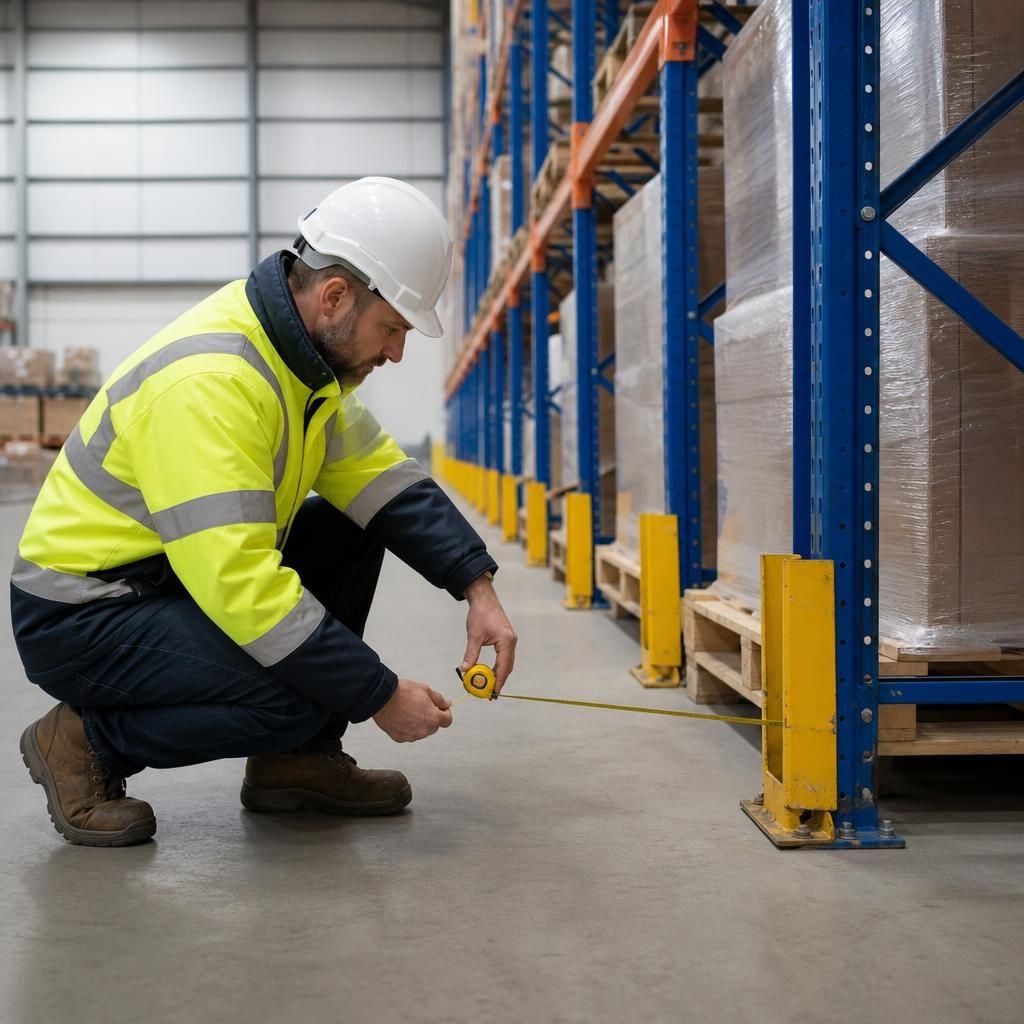

Measure the working envelope
Rack positions need checking against the movements taking place around them. Record the space needed at aisle ends, corners, junctions and loading points. Include turning paths for the handling equipment used in each area.
Note the position and opening direction of doors, shutters and gates. Measure the clear opening rather than relying on the stated door size. Check the route from delivery access to the installation area, including narrow passages, ramps and changes in level.
Also identify areas that must remain clear for emergency access, plant movement, maintenance or other regular tasks. A layout that fits on paper may not suit the operation if these spaces are overlooked.
Describe the stock in practical terms
Stock information should cover more than the outside dimensions of a pallet. Explain how loads sit on pallets, whether they overhang, and whether their shape or packaging varies. State the heaviest regular load and any occasional heavier load separately.
Include the number of pallets stored at each level, the number of levels required and any changes expected in stock profiles. Tell us which goods need direct access, which can remain in reserve, and which loads need dedicated positions.
These details affect the arrangement, usable levels and working pattern. They also help distinguish a storage requirement from a simple request for the greatest possible number of locations.
Describe the handling equipment
Provide the equipment type and its operating dimensions. Useful information includes overall width, turning characteristics, lift height, reach and the height needed to place or remove loads.
State how operators approach the rack and whether loads enter from one side or both sides. Include any restrictions caused by attachments, pedestrian routes or shared traffic areas. The proposed aisle arrangement must reflect the equipment that will use it, rather than an assumed vehicle.
Check the information before design work
Existing building drawings can support the survey, but they should be checked against site conditions. Alterations, new services and small changes to door positions can make older drawings unsuitable for installation planning.
Photographs labelled with locations can clarify features that are difficult to show on a plan. Include views of roof structures, service runs, floor defects, access routes and any area where the dimensions are uncertain. Record the date and source of each drawing or measurement.
Where dimensions are critical, take them at several points. Compare the results and identify the smallest usable clearance. Do not assume that opposite walls are parallel or that floor levels remain consistent across the building.
How we use the information
A no-obligation consultation may include a site meeting and survey. We then use the collected information to prepare a written proposal and working drawings for review.
The drawings should show how the pallet racking installation relates to the building, access routes, stock positions and handling movements. They provide a clearer basis for comparing layouts than a quotation based only on rack quantities.
Where required, project management can continue from proposal and tender stages through installation and final commissioning. Spartan Direct Limited can coordinate these stages when the project involves several connected workplace requirements.
Before the survey, provide current drawings, stock schedules and equipment details if available. Mark fixed features and explain any planned operational changes. This gives the survey a useful starting point while allowing site conditions to decide the final measurements.
Separate measured facts from planning assumptions. Mark each figure as measured on site, taken from a drawing, or supplied as an operating requirement.
Keep assumed pallet dimensions, vehicle clearances and future stock changes outside the verified site record. This gives the written proposal and working drawings a clear basis for comparing pallet racking layouts.
