How do you choose pallet racking for different pallet loads?
Choose pallet racking by matching each pallet’s weight, dimensions, load stability and handling method to the rack’s capacity and layout. We assess these requirements through consultation and site surveys, then prepare proposals and working drawings for safe, accessible storage.
The correct pallet racking depends on the rack’s rated capacity, pallet dimensions, load distribution, access requirements and intended handling method. A rack that suits lightweight, uniform pallets may be unsuitable for heavier, irregular or unstable loads.
Start with the complete pallet specification. Record the loaded pallet’s weight, height, width, depth and base condition. Include the heaviest normal load, not only the average load. Note any uneven weight distribution, liquid containers, fragile goods or items that can shift during handling.
- Weight: Check the combined load on each beam level and the total load carried by each upright frame.
- Dimensions: Allow for pallet size, load overhang and the space needed between adjacent loads.
- Load distribution: Confirm whether weight sits evenly across the pallet or concentrates at particular points.
- Stability: Consider wrapping, banding, cartons, cages and other measures that affect how securely goods sit in storage.
- Pallet condition: Damaged or inconsistent pallets may require different handling arrangements or additional controls.
Match the rack type to the stock profile. Selective pallet racking provides direct access to individual pallets, which can suit warehouses holding many stock lines. Higher-density arrangements can reduce aisle numbers, but they may limit direct access or require a particular loading sequence.
Drive-in arrangements generally suit more uniform stock stored in larger quantities. Push-back or flow arrangements may suit operations where storage rotation and loading direction influence access. The correct choice depends on stock movement, pallet consistency and the equipment used.
Check the rack configuration, not just the beam rating. Capacity varies with beam length, upright height, frame depth, beam position, bay arrangement and the number of stored levels. Changing any of these details can alter the permitted load.
For this reason, do not rely on a capacity figure from a similar-looking rack. The rack supplier or designer should confirm the rating for the proposed configuration. Load information should remain clear to warehouse users after installation.

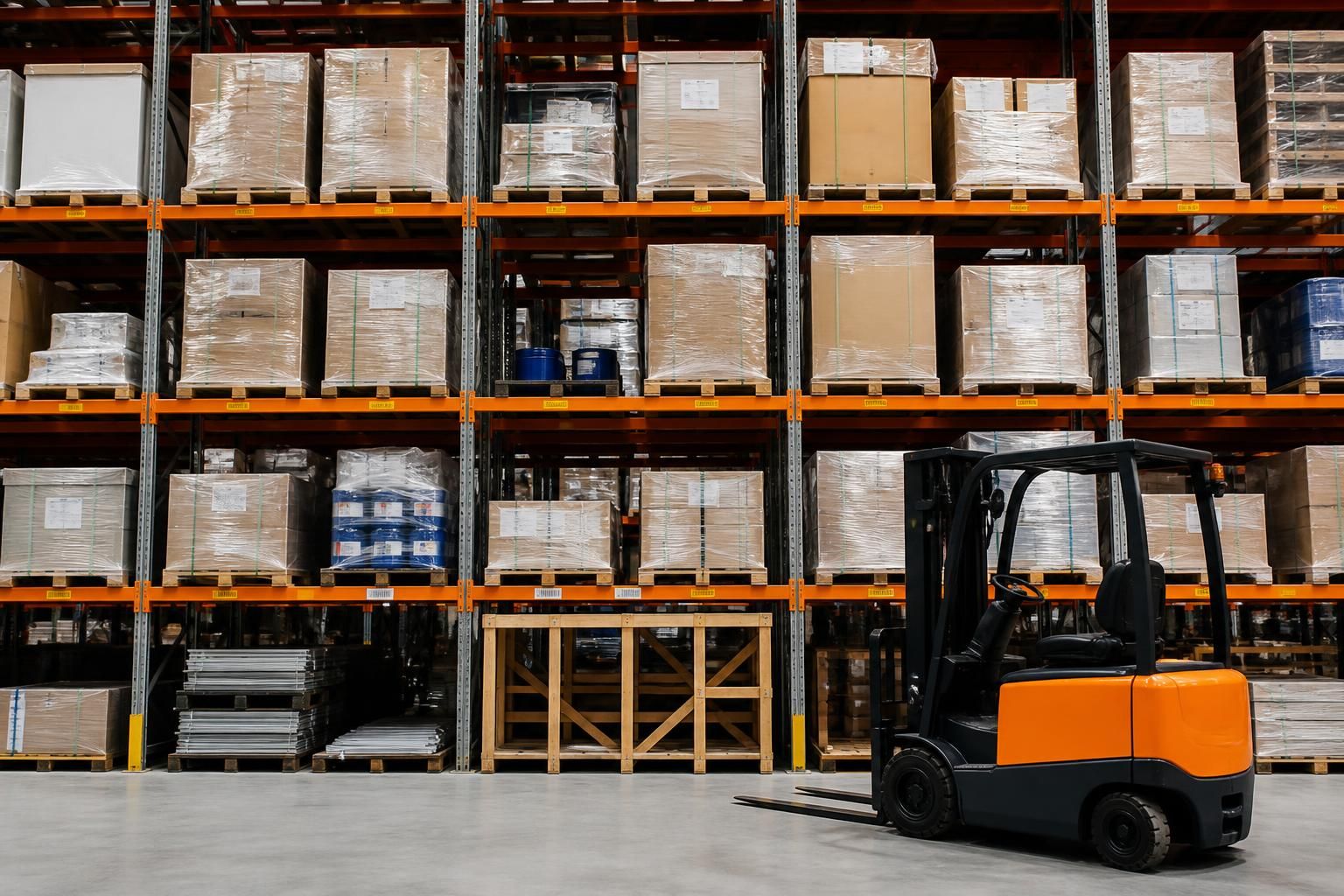

Allow for handling equipment. Forklift type, reach height, turning space and operator visibility all influence the suitable aisle arrangement. A pallet may fit within a bay while the handling equipment cannot place or retrieve it safely.
Consider the full movement path from receiving to storage, picking, replenishment and dispatch. A denser layout is not suitable if it slows access, creates awkward manoeuvres or prevents the required stock rotation.
Check the building and floor conditions. Upright loads transfer forces into the floor, so the existing slab, floor level and fixing requirements need consideration. Columns, doors, lighting, sprinklers, services and fire routes can also affect bay positions and available height.
Clearances should account for the pallet, the load and the movement of the handling equipment. Do not treat unused space above a pallet as automatically available for another level. The proposed layout must preserve safe access and suitable separation.
Plan for changes in stock. If pallet weights, dimensions or stock lines vary, the design should reflect the full operating range. Adding heavier goods later can exceed the original capacity, even when the pallets occupy the same locations.
Tell us about expected changes during the consultation. Site meetings and surveys allow the existing conditions, storage activity and handling arrangements to inform written proposals and working drawings.
Spartan Direct has worked on storage systems since 1982, including pallet racking for companies of different sizes across the UK. That experience supports a practical review of loads, access and available space before rack details are finalised.
Before use, brief warehouse users on the permitted loads and the correct placement of pallets. Arrange inspections and act on damage, displaced components or changes to stored loads. A load change should prompt a review rather than an assumption that the existing rack remains suitable.

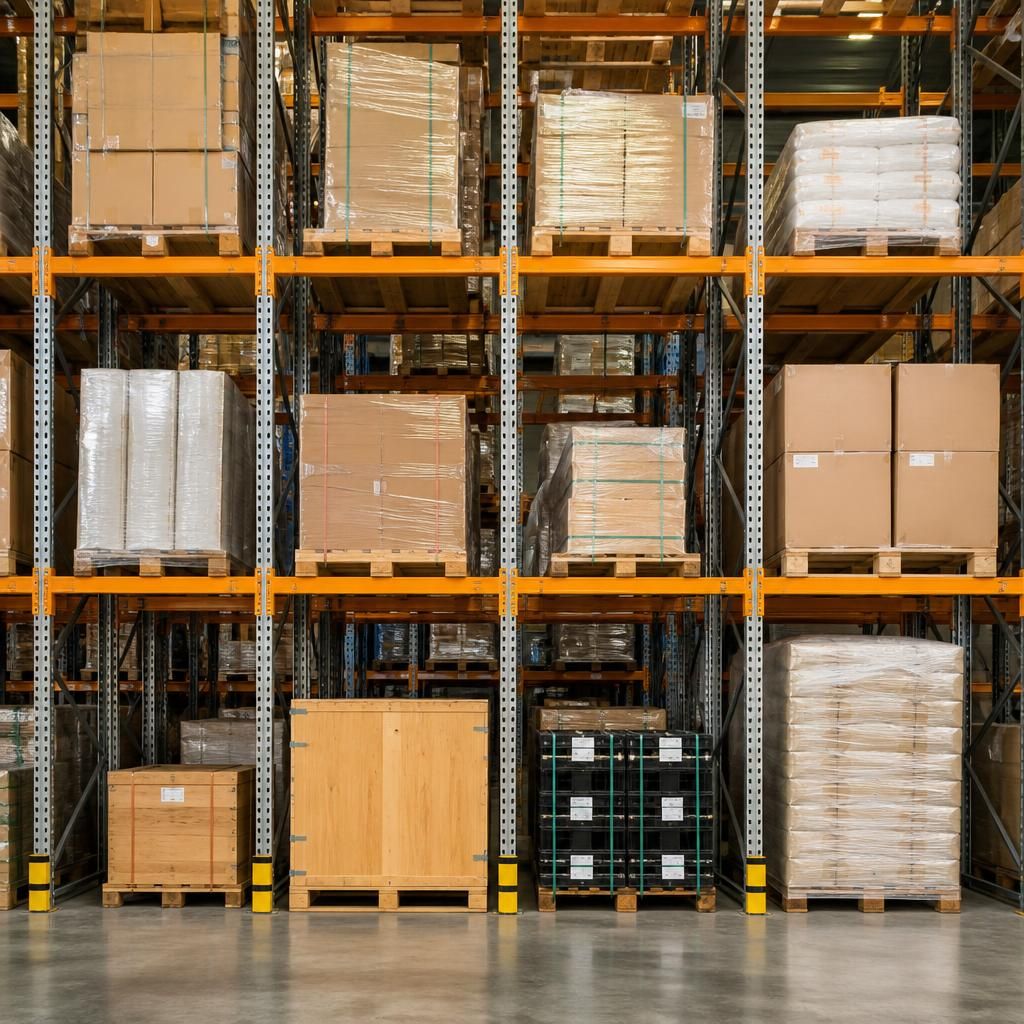

Pallet racking for mixed loads should start with clear load groups, rather than one average pallet specification. Separate standard, oversized and variable-height pallets so each group can be assessed against suitable bay dimensions and access needs.
This approach helps identify where different beam positions, bay arrangements or storage zones may be needed. It also prevents an unusual load from being placed in a standard location simply because its weight appears acceptable.
