What safety requirements should push back pallet racking meet before installation? Before installation, push back pallet racking should be checked against pallet loads, dimensions, clearances, floor conditions, access routes and protection needs. We assess these through a site survey, written proposal and working drawings.

Push back pallet racking should not be installed until its design, equipment condition, operating method and surrounding workplace have been assessed together. The proposal should show how the system remains stable, accessible and controlled under the intended conditions.

Confirm the system suits the intended operation. Push back pallet racking uses inclined storage lanes and moving components. Before approval, confirm that operators understand loading, unloading and lane access. The working method should prevent people entering lanes while pallets or carriages could move.

Check that the system supports the planned stock rotation method. Push back pallet racking generally suits storage where access occurs from one aisle, rather than frequent access to every pallet. If your workflow needs direct access to each load, another arrangement may offer better control.

Verify design information and load limits. The design should identify the permitted pallet weight, pallet dimensions, lane arrangement and storage levels. It should also account for the forces created when pallets are placed onto, moved within and removed from lanes.

Load notices should be clear and fixed where operators can see them. They should match the installed arrangement, not an earlier proposal or a different pallet type. Never treat a beam, carriage or frame rating as permission to exceed the complete system limit.

Check pallet and equipment compatibility. Pallets should sit correctly on the intended supports without unstable overhangs or contact with adjoining components. Inspect pallet condition before use, particularly when pallets are reused or carry uneven loads.

The moving carriage, wheels, guides, stops and retaining features should match the design. Their movement must not create trapping points, unexpected travel or contact with stored loads. Any change to these parts should be reviewed before the system is used.

Assess stability and impact risk. The installation should provide a stable connection between frames, beams and other structural elements. The supporting floor and fixing method must suit the imposed loads and the building conditions identified during the survey.

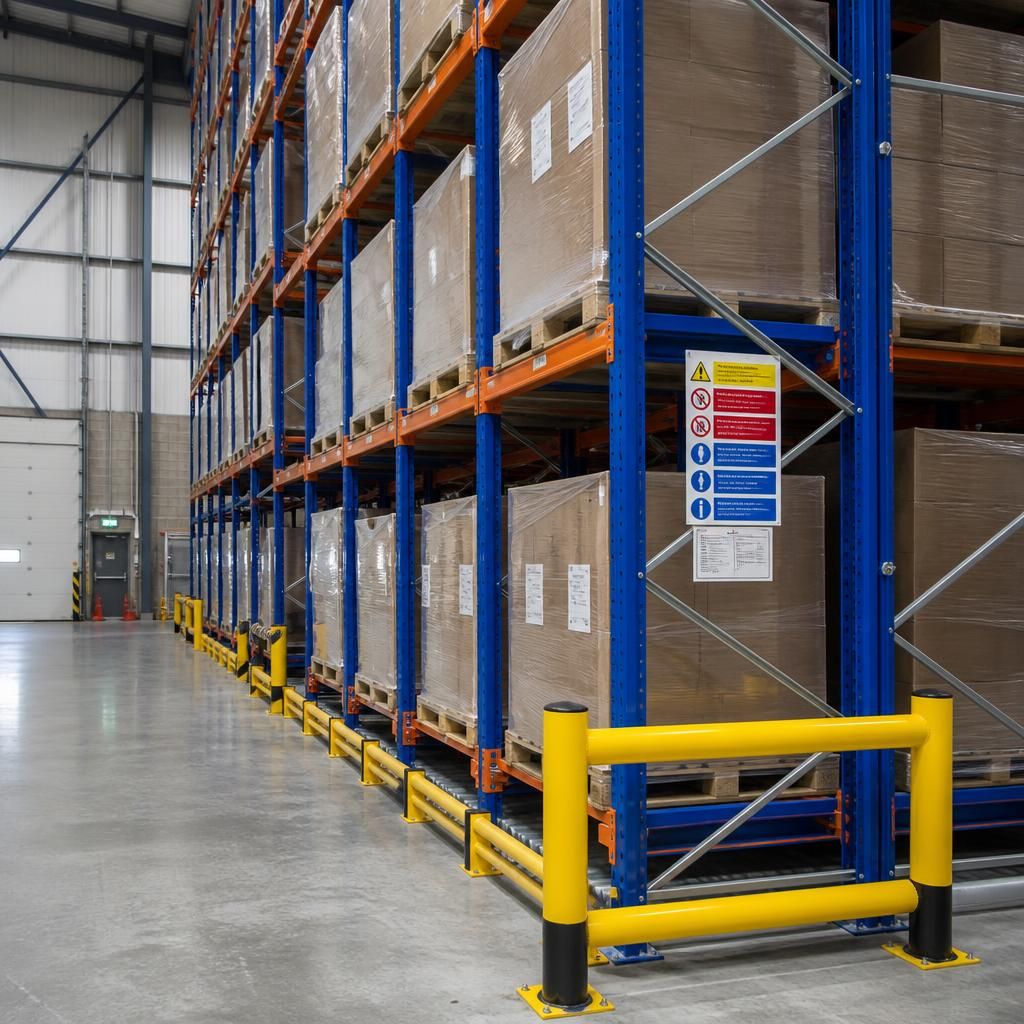

Consider impacts from handling equipment at aisle ends, corners and exposed uprights. Protection should be positioned where it reduces foreseeable contact without obstructing access, escape routes or equipment movement. Damaged protection should not be treated as adequate protection.

Separate people from moving equipment. The layout should make pedestrian and vehicle movements understandable. Use physical separation, controlled crossing points and visible route markings where the risk assessment identifies a need.

Keep emergency routes, doors, fire-fighting equipment and access to building services unobstructed. The final arrangement should also preserve safe visibility at junctions and prevent stored goods from projecting into travel paths.

Consider the building and its services. Measure obstructions such as columns, doors, lighting, sprinklers, heating equipment and electrical services before the layout is approved. The installation must not interfere with building systems or prevent inspection and maintenance access.

Check the available height above the highest load and allow for the movement of handling equipment. The arrangement should not force operators to work beneath unstable loads or place stock where it can fall into occupied areas.

Define operating controls before handover. Written instructions should cover approved pallet types, loading sequence, unloading sequence, maximum loads and prohibited practices. Include controls for damaged pallets, displaced loads and equipment faults.

Operators should know that push back lanes are not work platforms or pedestrian routes. Do not allow climbing, walking on carriages or reaching beneath moving components. Supervisors should have a clear process for stopping use when a safety concern appears.

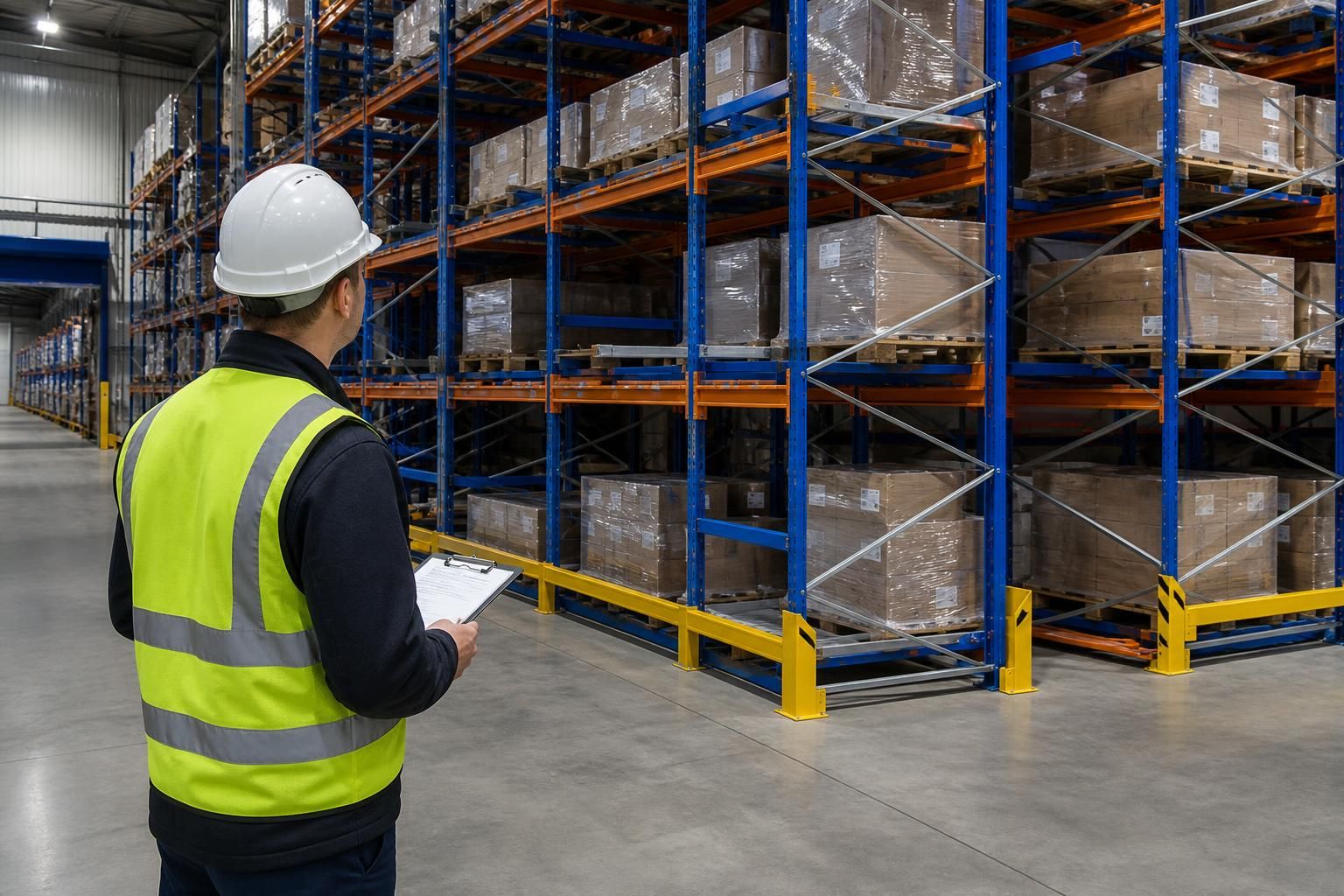

Agree inspection and alteration arrangements. The handover information should identify what operators must check during use and what requires a competent inspection. Keep records of reported damage, repairs and changes to the arrangement.

Do not relocate frames, alter lane depths or change loading levels without reviewing the design. A seemingly minor change can affect clearances, stability or the permitted load. New stock, pallets or handling equipment may also require reassessment.

Use a documented design review. A no-obligation consultation may include a site meeting and survey, followed by written proposals and working drawings. These documents give you an opportunity to check the layout before installation begins.

We can use that review to identify operating assumptions, access controls, protection requirements and information needed for handover. Where required, project management can continue from proposal and tender stages through installation and final commissioning.

Ask for the completed arrangement to be checked against the agreed drawings before use. That final comparison helps identify unauthorised changes, missing protection or incorrect load information before stock enters the lanes.
