What floor-loading checks should a mobile pallet racking proposal include?

A sound mobile pallet racking proposal should show how the existing floor will support the complete operating system, not just the stored pallets. It should record the design assumptions, loading cases, rail arrangement, floor condition, installation constraints and any information still requiring confirmation.

The proposal should begin with a clear load schedule. This normally separates the dead load from the mobile bases, rails and racking, from the imposed loads created by pallets and handling activity. It should state the assumed pallet weight, bay arrangement, storage levels and the maximum loading condition used for assessment.

• Mobile base and racking self-weight.
• Maximum pallet weight and the number of loaded positions.
• Load concentration at each support or wheel location.
• Additional forces associated with starting, stopping and operating the mobile bases.
• Any allowance required for uneven loading or changes to the storage arrangement.

Those assumptions should match the pallet information and operating method. If weights, dimensions or storage levels remain unconfirmed, the proposal should identify them clearly rather than presenting an unqualified floor assessment.

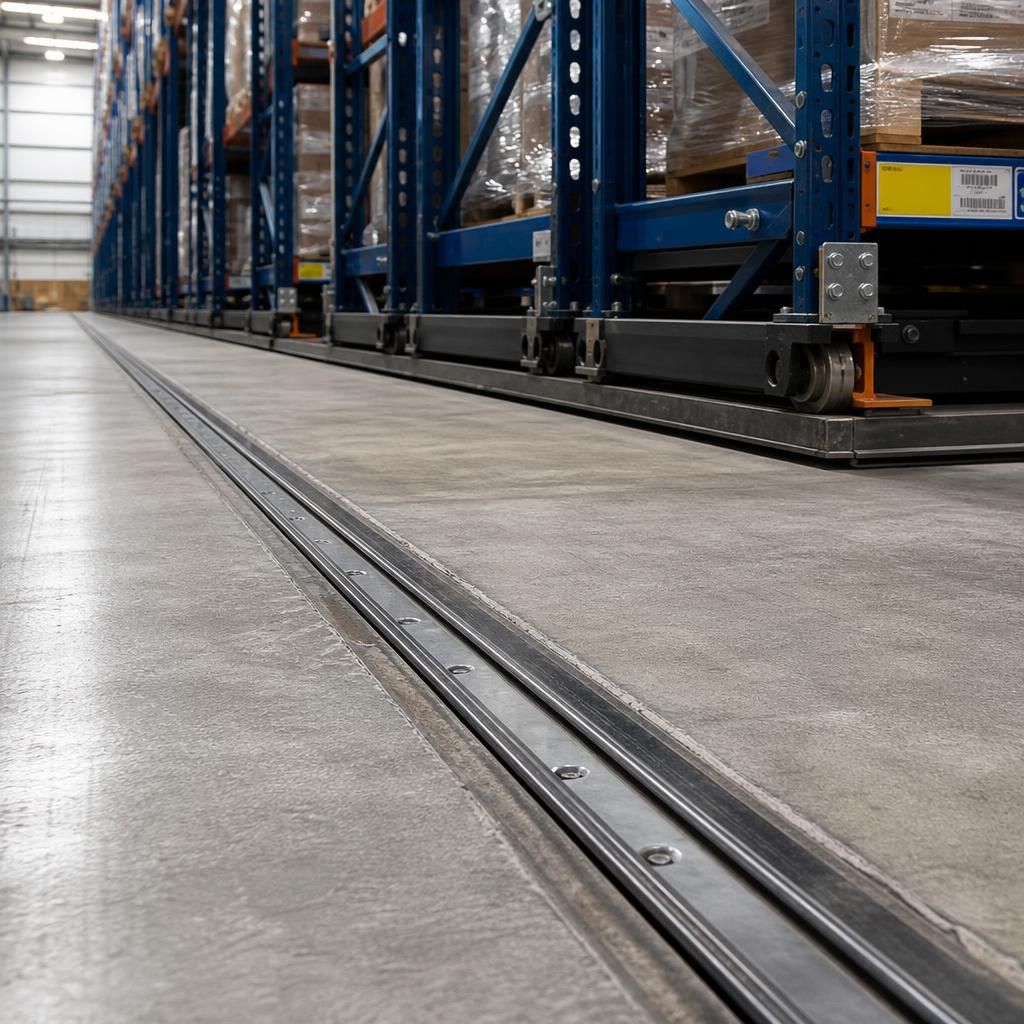

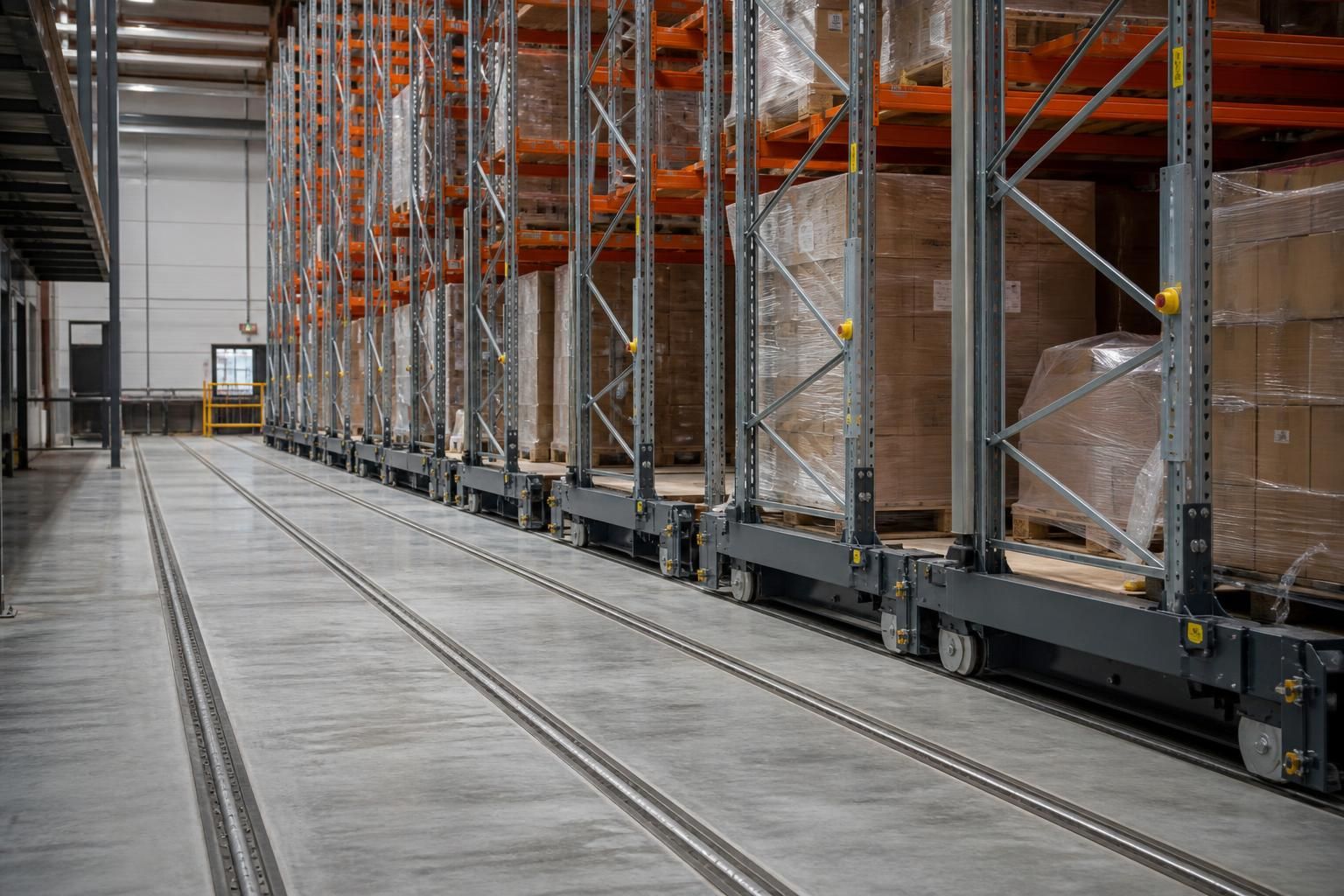

The rail layout also needs to appear on the working drawings. Rail spacing, orientation, lengths and end positions affect where forces enter the slab. Drawings should show rail lines in relation to joints, edges, columns, pits, drains, thresholds and other fixed features. They should also identify any areas excluded from loading.

A useful proposal should describe the existing floor information used for the assessment. This can include available structural drawings, slab thickness, concrete specification, reinforcement details and information about the supporting ground. Where records are unavailable, a site survey should record what can be established visually and through suitable investigation.

Floor condition is separate from design capacity. The survey should record cracks, settlement, spalled concrete, damaged joints, local repairs, changes in level and deterioration around existing traffic routes. These findings can affect rail alignment, anchoring, load transfer and installation access.

Joint positions require particular attention. Rails crossing movement joints, construction joints or damaged areas may need a revised arrangement or further structural review. The proposal should state how the intended rail route relates to those joints, rather than leaving the installer to resolve conflicts on site.

The assessment should consider the way loads transfer through the system. Mobile equipment can create high local reactions at wheels, rails, base supports and fixings. A floor may appear adequate for evenly distributed storage while requiring further consideration at these concentrated locations.

For each relevant load case, the proposal should identify the design reaction and the part of the floor being checked. The information should make clear whether the assessment considers:

• Local bearing beneath rails, wheels or support points.
• Slab bending and the effect of concentrated reactions.
• Potential punching or local failure around heavily loaded areas.
• Overall stability and load transfer through the supporting ground.
• Deflection, settlement or level changes that could affect rail operation.

The correct checks depend on whether the floor is ground-bearing, suspended, altered or supported by a structure below. A proposal should identify this distinction and state when information from the building owner or a structural professional is needed.

Services below or within the slab should be included in the review. Rails, anchors and any floor preparation must not conflict with drainage, heating, power, data routes or other buried installations. Existing service information should therefore be requested and its status recorded in the project documentation.

Level and flatness requirements should be stated alongside capacity. Mobile bases depend on accurately positioned rails and consistent running conditions. The proposal should explain how existing irregularities will be measured and whether local preparation, remedial work or a revised layout is required.

We can use a no-obligation consultation, site meeting and survey to gather this information. We then prepare a written proposal and working drawings showing the intended arrangement and its key assumptions. Where required, project management can continue from proposal and tender stage through installation and final commissioning.

Before approval, you should be able to identify four things: the loads used, the floor information relied upon, the locations requiring confirmation and the work included to address any deficiency. This makes comparisons between mobile pallet racking proposals more meaningful and exposes exclusions before installation.

For a project involving uncertain slab information, the proposal should not treat an assumed capacity as a confirmed acceptance. It should set out the next investigation or structural review, the party responsible for providing it and the effect on the rail layout or specification.
