What site information is needed to plan warehouse line marking?
Planning warehouse line marking requires accurate information about the available floor area, existing layout, storage locations, pedestrian and vehicle routes, loading areas, access points and any hazards or restrictions. Site surveys, drawings and details of your intended workflow allow the proposed layout to be assessed and documented before installation.
A workable warehouse line-marking plan needs more than a floor plan. It should record the operational rules, surface conditions, marking requirements, site constraints and supporting documents that determine where markings are practical and how they should be specified.
Operational information
Explain how the warehouse is used and which activities the markings must support. Useful information includes:
- the types of vehicles and handling equipment used on site;
- the difference between routine movements, occasional movements and restricted areas;
- where pedestrians may cross or work near vehicle activity;
- any one-way systems, exclusion zones, waiting areas or no-storage areas that the business wants identified;
- how stock is received, stored, picked and dispatched; and
- any changes planned to the operation, such as new equipment, revised storage arrangements or increased production.
This information helps distinguish markings that are essential for control and safety from markings used mainly for organisation. It also prevents a proposed layout from reflecting the current operation while becoming unsuitable after a known change.
Risk and management requirements
Provide any relevant risk assessments, traffic-management documents, fire strategy information, internal workplace rules and previous inspection findings. These documents can identify requirements that are not obvious from a visual inspection, such as keeping access to safety equipment clear, controlling pedestrian movement or maintaining a particular separation between activities.
If the warehouse operates to a group-wide or landlord standard, provide that specification too. Colour conventions, line styles, symbols, bay identification and warning hatching should be agreed rather than assumed, particularly where employees, visitors, contractors or drivers need to interpret the markings consistently.
Floor and surface information
The proposed marking system depends on the condition and type of surface. The survey should therefore consider:
- the floor material and areas with different surface finishes;
- existing paint, resin, tape or other markings that are to remain or be removed;
- oil, dust, moisture, chemical contamination or cleaning residues;
- cracks, repairs, joints, uneven areas and damaged concrete;
- the level of wear expected from vehicles, wheels, foot traffic and cleaning equipment; and
- any environmental conditions that could affect preparation, adhesion or curing.
A clear record of these conditions allows the proposed preparation method and marking material to be considered alongside the appearance required. It can also identify areas that need remedial work or a different treatment before markings are applied.
Dimensional and drawing information

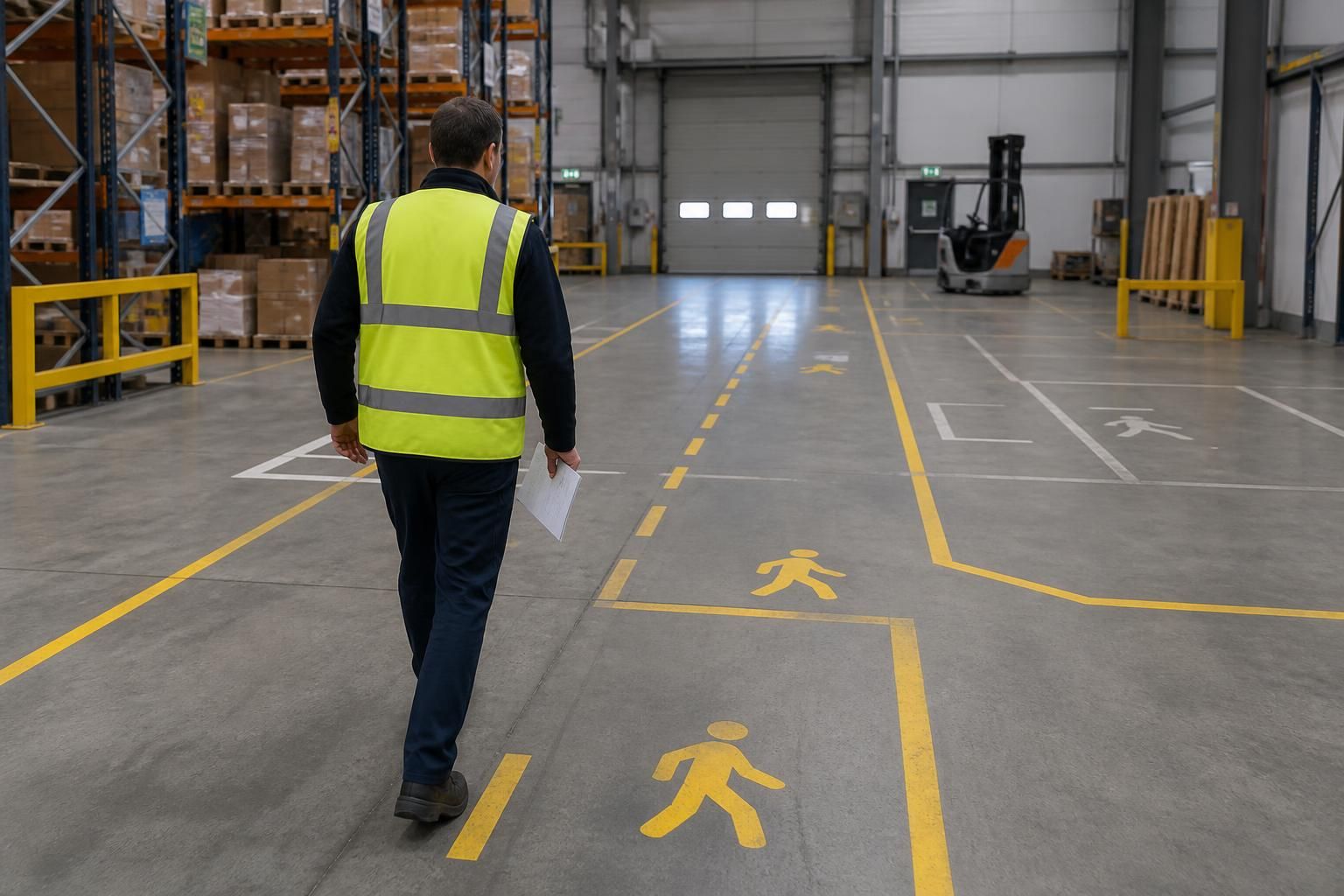

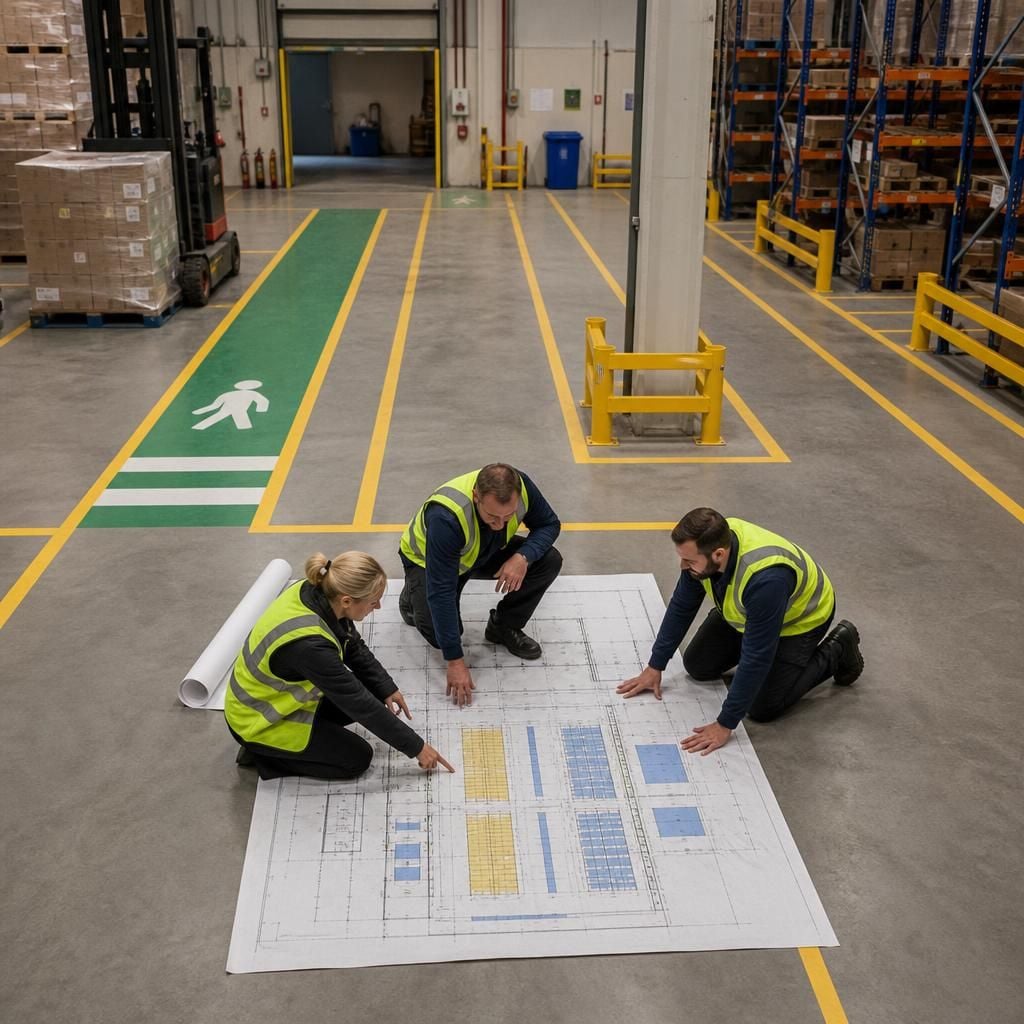

Where available, provide current CAD files, building drawings, equipment drawings and previous line-marking plans. The drawings should show a reliable scale and a consistent reference point. If documents are outdated, they should be checked against site conditions rather than used without verification.
It is also useful to identify fixed features that affect marking accuracy, including structural columns, expansion joints, floor drains, fixed plant, service covers and changes in level. The required accuracy of aisle edges, bays, symbols and written instructions should be agreed before drawings are finalised.
Marking schedule and visual standards
A written schedule should set out what is required in each area. This may include line colour, width, symbols, text, arrows, bay numbers, pedestrian crossing treatments, hazard hatching and areas where markings must not be placed. Photographs of existing signs or examples from another part of the business can help clarify the intended standard, but they should be accompanied by written instructions where interpretation could affect the design.
Installation constraints
The planning information should also identify restrictions affecting the work itself. These may include site induction requirements, permit procedures, access for the installation team, areas that must remain operational, preferred work sequences and the person responsible for approving each stage. If the work is to be divided into phases, provide the boundaries and priorities for each phase.
Details of the required finish, cleaning regime and any restrictions on returning an area to use should be agreed before installation. The installation proposal can then account for preparation, marking, inspection and final handover without treating an assumed programme as a guarantee.
Spartan Direct’s consultation may include a site meeting and survey, followed by written proposals and working drawings. Where required, project management can continue from proposal and tender stages through installation and final commissioning. For a warehouse in the West Midlands, supplying accurate operational documents, surface information and marking standards gives the survey and design process a dependable basis and makes the proposed layout easier to review before work begins.
Identify which warehouse features are permanent, movable or likely to change before the line-marking layout is prepared. Fixed racking, columns, plant, doors and building services provide reliable reference points, while temporary stock positions, mobile equipment and short-term work areas should not automatically determine the final layout.
For each changeable area, state whether it needs a permanent marking, a temporary treatment or no marking at all. This helps prevent bays, walkways or exclusion zones being positioned around arrangements that are due to move. It is also useful to note who can approve changes to the layout, so the completed markings reflect the agreed operating plan rather than an assumption made from the warehouse’s current appearance.
