What load rating should you check for a server rack cabinet?

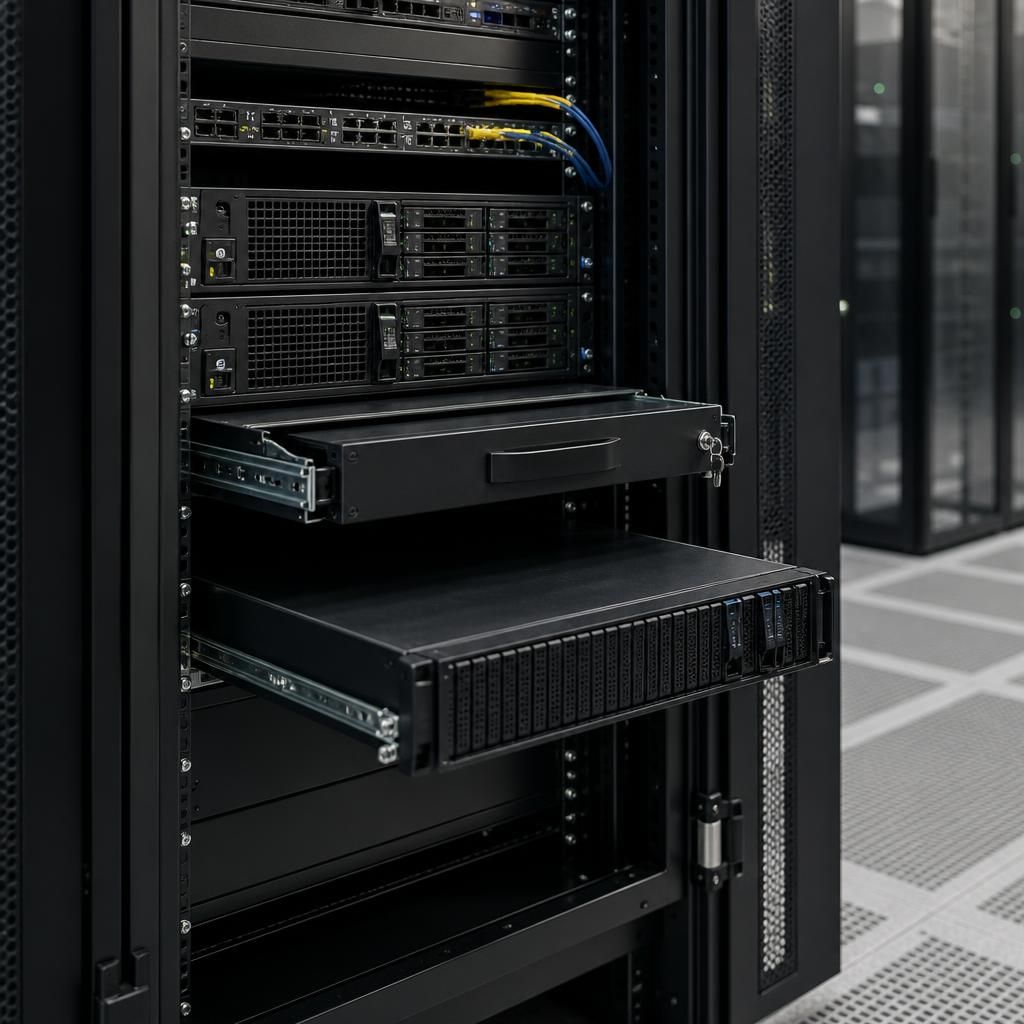

Check the server rack cabinet’s maximum permitted load against the combined weight of servers, UPS units, switches, drawers and other installed equipment. Confirm whether the rating applies to static or dynamic loads, particularly if the cabinet may be moved after installation.
The correct load rating is the cabinet’s usable capacity in its intended configuration, not simply the largest figure in a product description. Check how the rating is defined, which components it covers, and whether it suits the equipment arrangement.
Check the rating conditions
- Confirm whether the stated capacity applies to the complete cabinet or only its frame.
- Check separate limits for mounting rails, shelves, drawers, doors and other accessories.
- Ask whether the rating depends on a particular rail position, cabinet width or internal support arrangement.
- Check the permitted load for each shelf or pair of rails, rather than relying only on the cabinet total.
- Confirm that the rating covers the installed configuration, including accessories fixed inside the cabinet.
A cabinet may have sufficient overall capacity while one shelf or mounting pair remains overloaded. Load distribution therefore matters as much as the headline figure.
Consider how the load is distributed
Place heavier equipment low within the cabinet where the arrangement allows. This can reduce stress on upper mounting points and support a stable layout.
Check the equipment’s position from front to back. A deep or unevenly supported load may place greater demand on the rails and cabinet frame.
Also consider concentrated loads. Several items mounted close together can affect an individual shelf, rail or fixing point differently from an evenly distributed load.
Rack-unit capacity describes the vertical space available, not the weight the cabinet can support. A cabinet with unused rack space may still need a higher load rating.
Check the supporting floor and fixing method
The cabinet transfers its load through its base, castors or levelling feet. Check that the floor can support the combined cabinet and equipment load.
Ask how the cabinet should be positioned, levelled or secured for its intended use. The installation method can affect stability and the way forces reach the floor.
Review access routes before delivery if the cabinet will arrive assembled or carry equipment during installation. Doorways, lifts and floor transitions can affect handling plans.
Allow for planned changes
Assess the equipment you expect to add, remove or replace during the cabinet’s working life. Selecting capacity only for today’s arrangement can restrict later changes.
Record the estimated load for each installed section and keep the cabinet documentation with the site records. Recheck the arrangement after significant equipment changes.
Do not assume that spare rack space equals spare load capacity. Confirm the remaining permitted load from the supplier’s technical information.
Use a survey when the information is uncertain
We can review the equipment schedule, cabinet position, floor conditions and access requirements during a no-obligation consultation. A site meeting and survey can identify information missing from a catalogue specification.
We can then prepare written proposals and working drawings showing the intended cabinet arrangement. Where required, project management can continue through installation and final commissioning.
This approach gives you a clearer basis for comparing load ratings before selecting a server rack cabinet. It also helps align capacity with the site, equipment layout and future requirements.

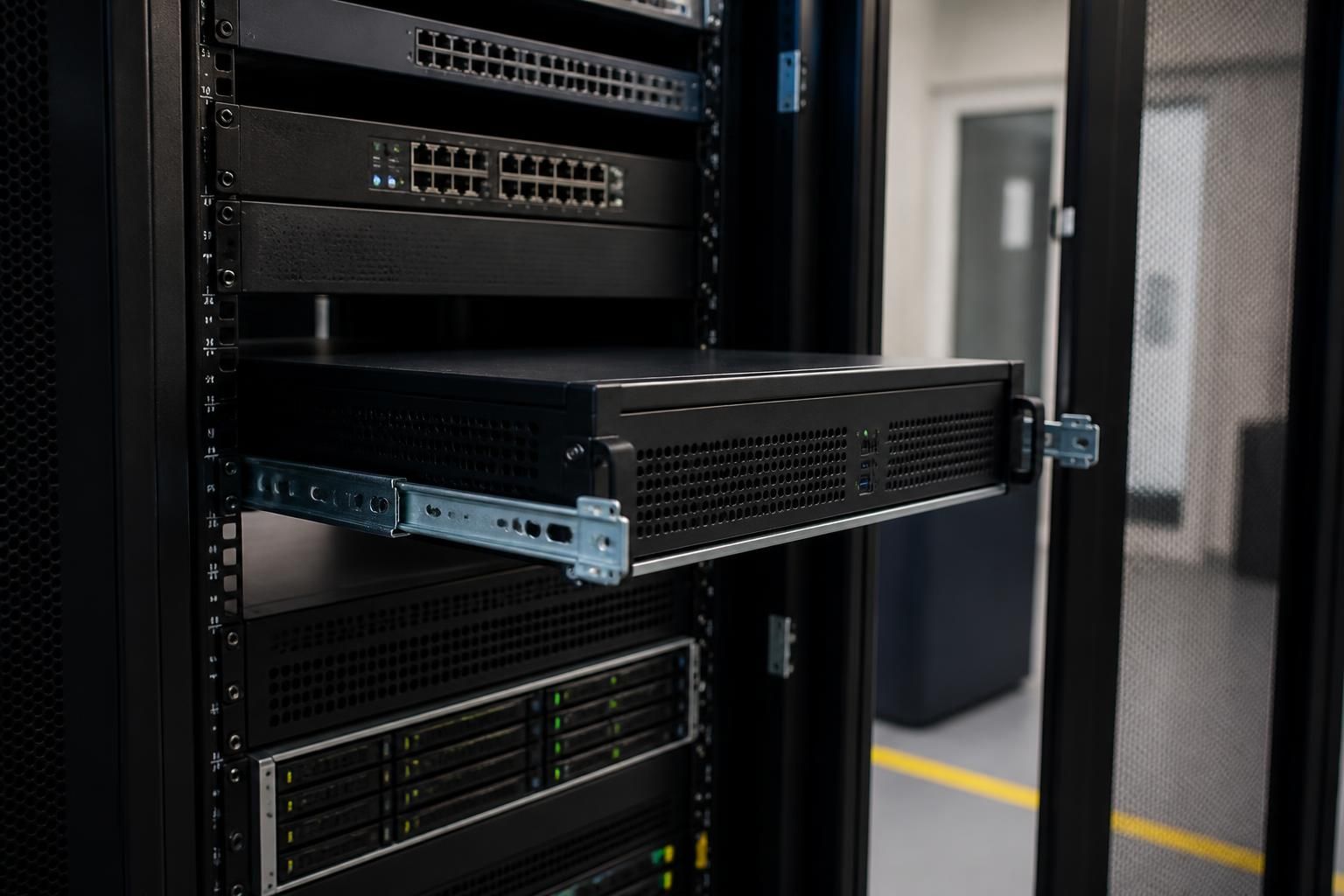

Sliding equipment can change the demand on a server rack cabinet when it moves forward. Check the load rating with drawers or rails extended, not only when closed.
Confirm that the stated capacity covers the equipment, sliding hardware and any movement permitted during access. This gives you a more accurate view of the cabinet’s working load.
