How do you determine coil storage system load capacity?

The allowable capacity is the lowest safe limit within the complete storage arrangement, not simply the heaviest coil you intend to store.

That limit can be governed by the storage members, coil supports, connections, base plates, floor, or handling conditions. Each part must accept the forces created by the stored coil and its movement into position.

Start with the stored coil

• Record the maximum coil mass, rather than relying on an average weight.
• Confirm the coil diameter, width, centre opening and overall shape.
• Identify whether coils stand upright, lie horizontally, or use different orientations.
• Note the material and any handling conditions that could affect stability.

Diameter and width affect where the coil contacts its supports. A larger coil can transfer forces differently from a smaller coil with the same mass. The centre of gravity also matters when the coil is positioned away from the support centre.

Check how the load is shared

A simple first check divides the coil mass between the intended support points. That does not prove the arrangement has sufficient capacity. Real loads may not divide evenly because of clearances, movement, uneven contact, installation tolerances, or coil position.

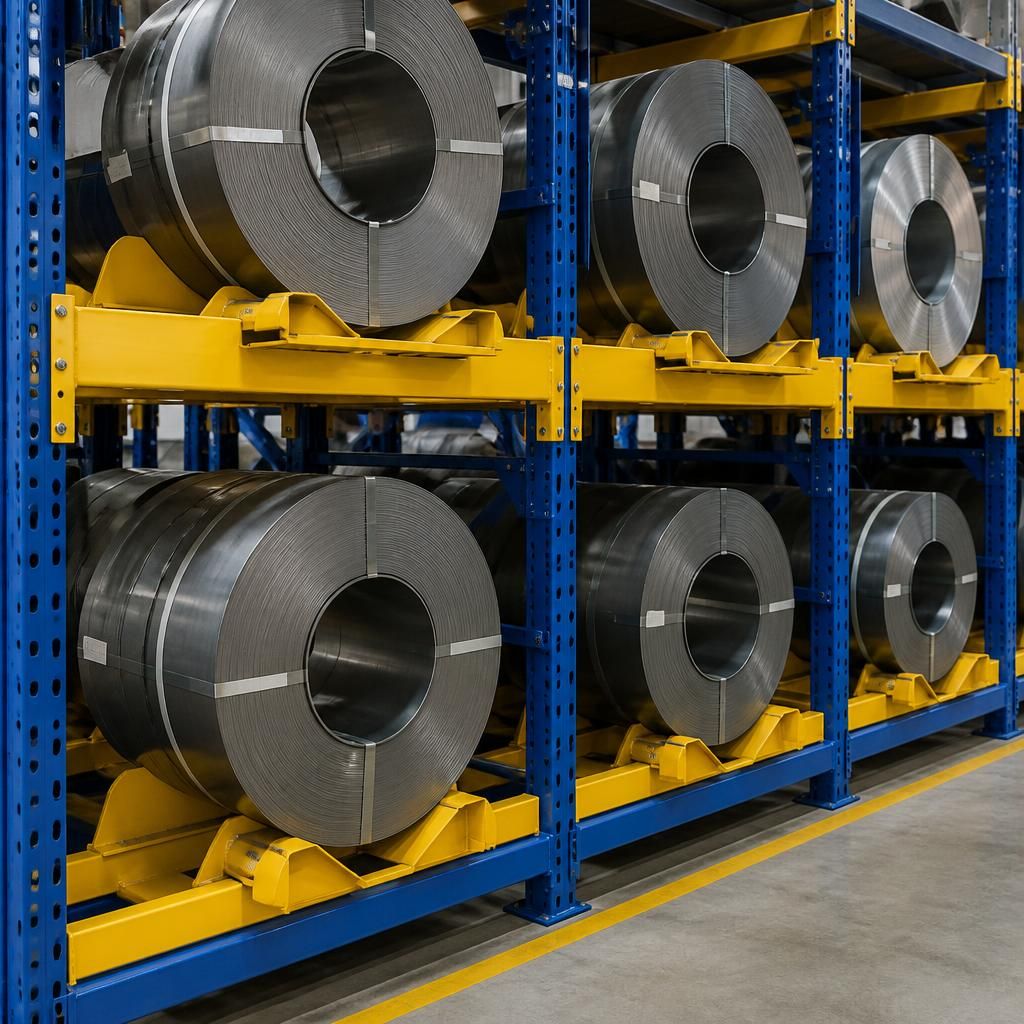

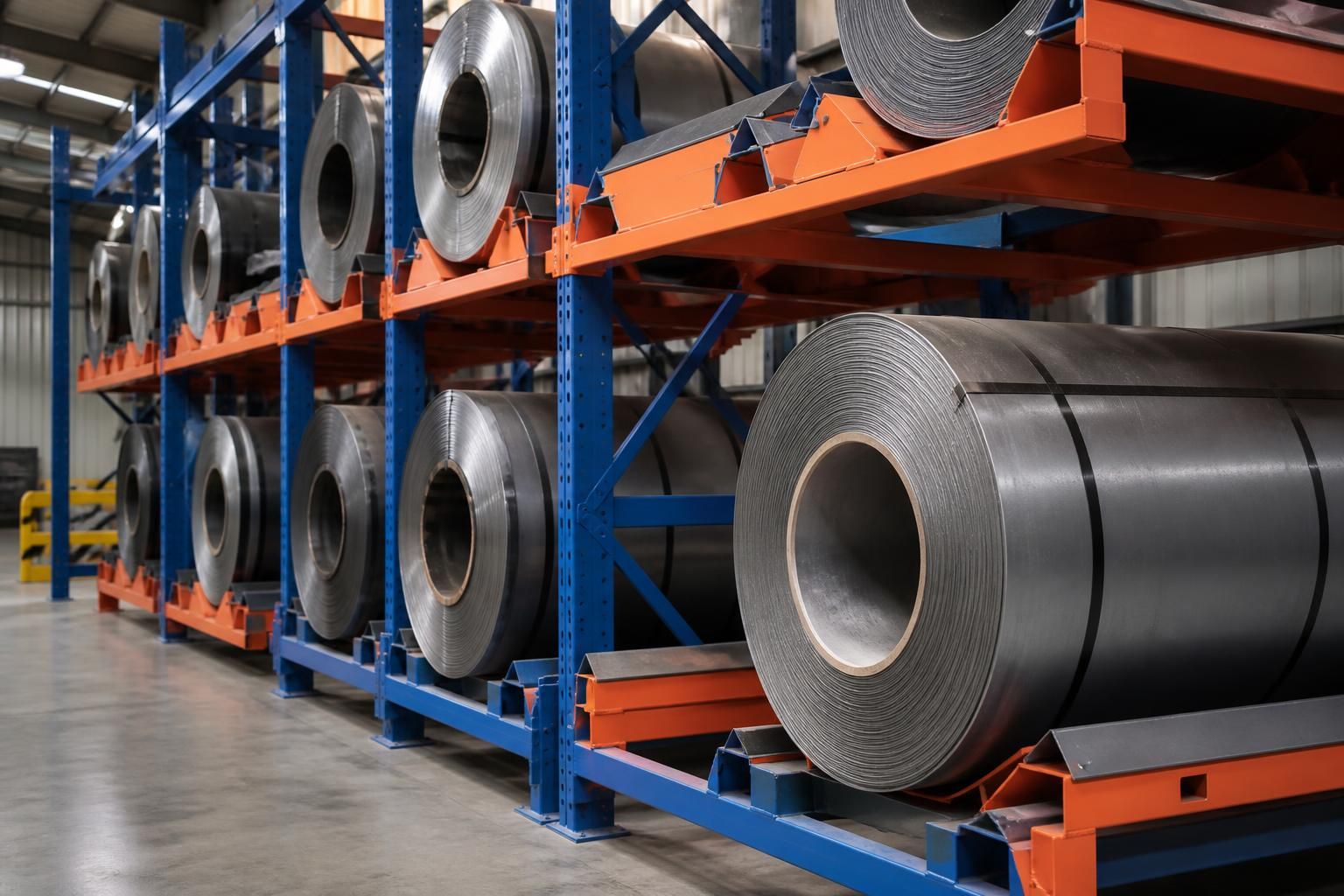

The design therefore considers the least-loaded and most-loaded support conditions. It also checks local pressure where the coil bears against saddles, cradles, arms, rails or other contact surfaces. These areas can govern the design before the main frame reaches its stated limit.

Assess the complete load path

Forces must travel from the coil through its supports, structural members, joints and base connections into the floor. A capacity figure for one component does not automatically represent the capacity of the complete system.

• Support members: checked for bending, compression and local deformation.
• Frames and uprights: checked for vertical load and overall stability.
• Connections: checked for the forces transferred between members.
• Base plates and anchors: checked for bearing, uplift and movement.
• Floor slab: checked for the concentrated loads beneath the supports.

The total bay capacity and the capacity of each storage position should be considered separately. Several coils may remain within a bay total while overloading one position or one support line.

Include handling forces

Coil storage does not experience static weight alone. Placing, removing, pushing, turning or accidentally contacting a coil can create additional forces. The handling equipment, travel direction, access arrangement and operating method therefore form part of the assessment.

Protection may also be required where vehicles or lifting equipment operate near the structure. Safety barriers, segregation and clear working routes can reduce the chance of impact, but they do not increase the structural capacity.

Review the site conditions

The floor condition, slab construction, level, existing damage and surrounding layout affect how a loaded system can be installed. Available clearance can influence the support arrangement and the way coils are handled.

Existing buildings may also contain services, columns, doors or restricted access routes. These features can alter the practical layout and the resulting load path. They should be identified before capacities are finalised.

Set the design limit

The design limit should state the permitted coil mass, position, orientation and storage arrangement. It should also identify any restrictions on mixed loads or changes to the support layout.

Do not treat a capacity plate, drawing or calculation for a different arrangement as approval for a new one. Changing coil dimensions, support spacing, bay configuration or handling method can alter the forces throughout the system.

At Spartan Direct, we use the available coil information and site conditions to develop the storage arrangement. Our work includes written proposals and working drawings, allowing the proposed loading requirements to be reviewed before installation.

Where a project requires it, we can coordinate the work from proposal and tender stages through installation and final commissioning. This provides a defined point for checking that the installed arrangement matches the agreed loading requirements.

Information to prepare for an assessment

• Maximum and typical coil weights.
• Coil diameters, widths and core dimensions.
• Storage orientation and the intended support method.
• Number of coils per position, bay and storage area.
• Handling equipment and the method used to place coils.
• Available floor information and relevant building constraints.
• Any existing damage, alterations or previous loading restrictions.

If the stored stock or handling method changes later, the capacity should be reviewed before the new arrangement is used. Racking inspections can identify damage and visible changes, but they do not replace a capacity assessment for changed loads.
