What should a coil racking site survey record?

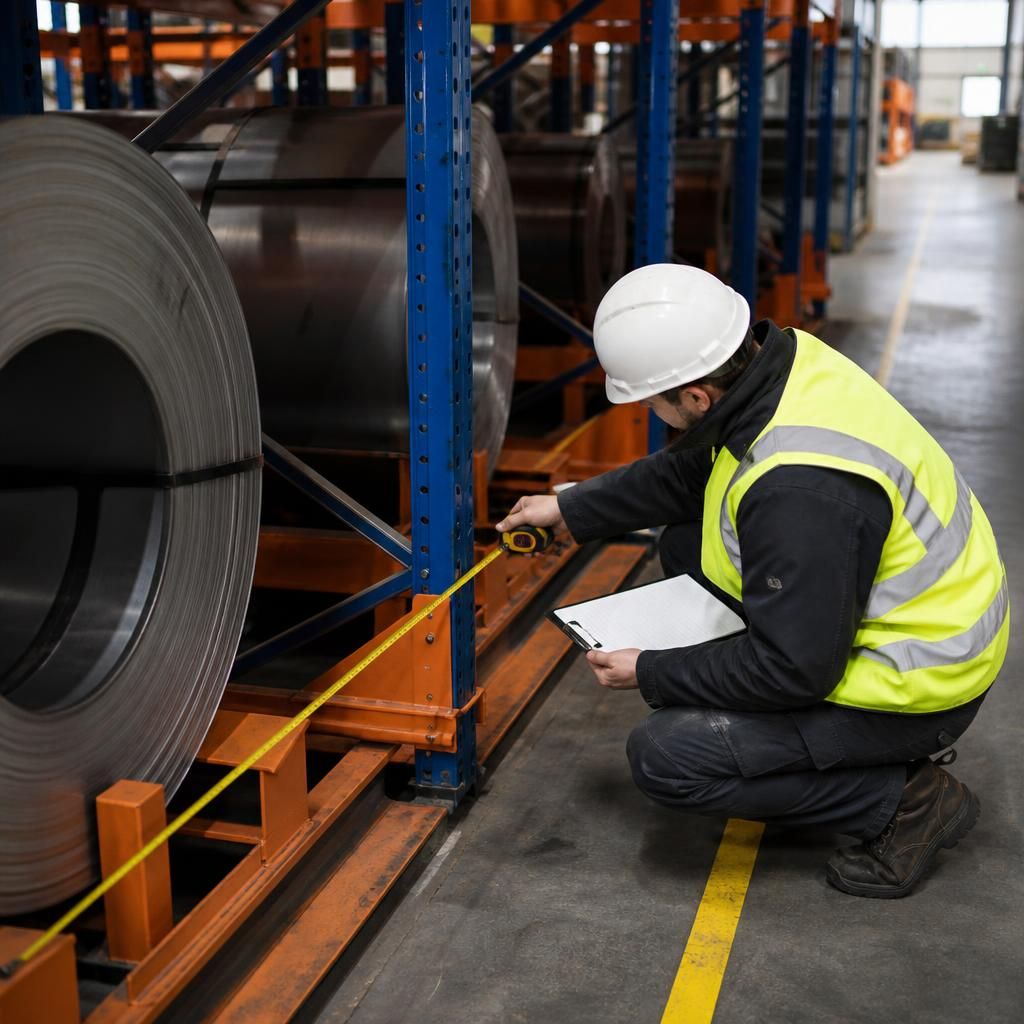

A useful coil racking site survey record explains how stock will be stored, selected and moved within the building. It should also document constraints that could affect the proposed arrangement, installation and later use.

Record the stock profile. List the coil types, materials, packaging and identification methods used on site. Note which coils are held regularly, which are temporary, and which need separate storage positions.

Include the expected stock mix rather than recording only today’s inventory. This shows whether the arrangement needs dedicated locations, mixed positions or allowance for changing stock requirements.

• Coil references or product groups
• Storage orientation and support method
• Frequency of receipt, movement and dispatch
• Stock rotation requirements
• Any coils requiring segregation

Describe the handling sequence. The record should follow each movement from arrival to storage, retrieval and dispatch. Note where operators need visibility, where loads wait, and which positions must remain accessible.

Record the order of normal and occasional movements. A high-level storage position may suit infrequently used stock, while regularly selected coils may need a more direct route.

Include the operating information needed to assess position selection and movement safely:

• How coils arrive and leave the storage area
• Where loads are checked or prepared
• Which storage positions are accessed most often
• Any shared routes or working areas
• Points where vehicles, pedestrians or production activity interact

Map the building interface. Mark columns, walls, doors, loading points and fixed equipment on the survey drawing. Record overhead obstructions, lighting, services and any areas that cannot be used.

Note changes in floor level, restricted corners and difficult installation points. These details can affect bay positions, component lengths and the practical sequence of installation.

The record should also show adjoining operations. Coil storage may sit beside production, packing or despatch activities, so the proposed arrangement must reflect those relationships.

Document the floor and structure information. Record the available information about the floor construction, condition and permitted loading. Where structural details are unavailable, identify that as an assumption requiring confirmation.

Mark cracks, damage, uneven areas or repairs that could affect the planned positions. Photograph relevant conditions and link each image to a location on the survey plan.

Where the system could interact with the building, record the points requiring further review. This might include walls, columns, suspended elements, mezzanine structures or other fixed installations.

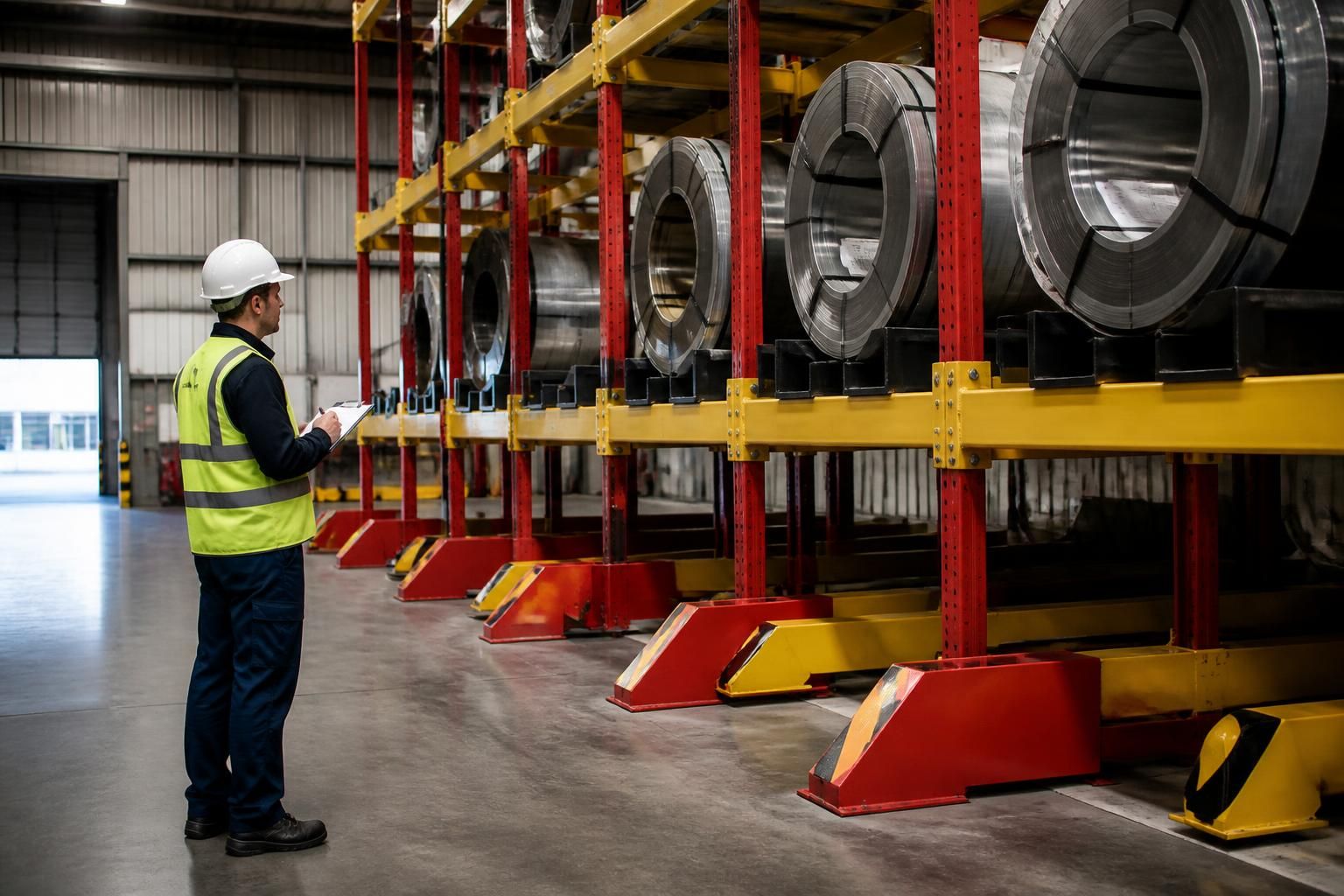

Capture protection and separation requirements. Identify areas needing physical separation from vehicles, pedestrians or adjacent work. Record existing barriers, gates, markings and protective measures that the proposed layout must retain or coordinate with.

Note fire exits, escape routes, access to equipment and other operational clearances. The survey record should show anything that must remain unobstructed during storage and handling.

Include photographs and marked-up drawings. Photographs provide a record of actual conditions, while a marked-up plan shows dimensions and relationships more clearly. Number each image and locate it on the drawing.

Record the survey date, attendees, areas inspected and information supplied by the site team. Separate measured information from stated assumptions or items awaiting confirmation.

State the design decisions still to be agreed. A good record identifies open points rather than hiding them within a quotation. These may include stock growth, preferred access priorities, protection details or installation restrictions.

It should also note the required deliverables, such as layout drawings, load information and installation notes. This gives you a clear basis for comparing coil racking proposals.

Our no-obligation consultation may include a site meeting and survey, followed by a written proposal and working drawings. Where required, project management can continue through installation and final commissioning.

The completed survey record should therefore provide an auditable link between the site evidence, the operating brief and the proposed coil storage arrangement. It helps you challenge assumptions before work begins and confirms which details still need approval.
